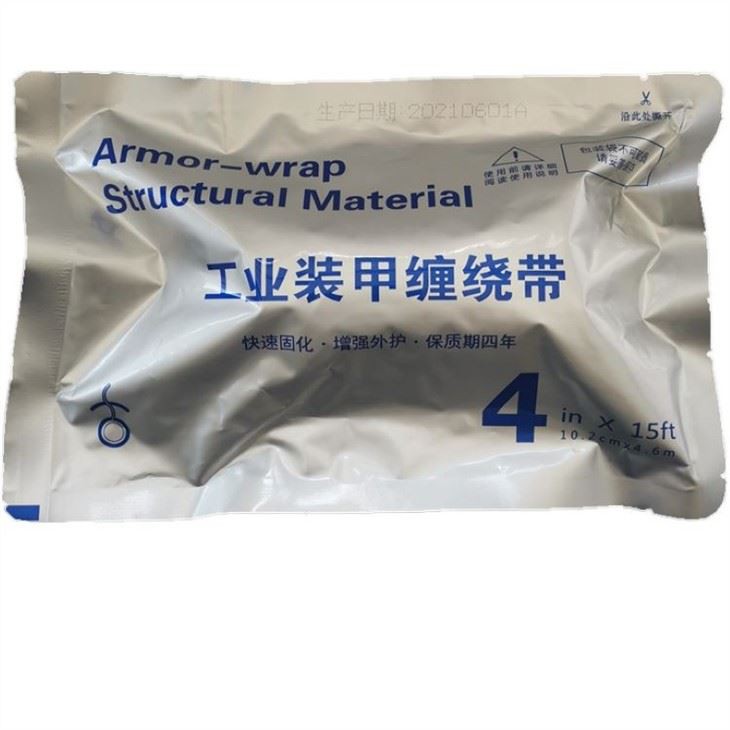

Intermediate Joint Armor Tape

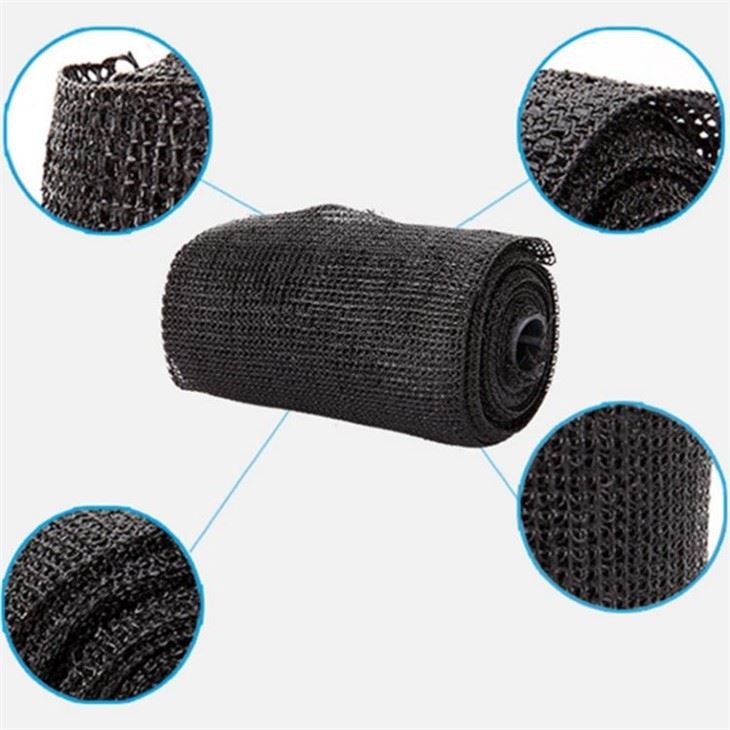

Intermediate Joint Armor Tape is a kind of armor belt synthesized by coating the surface of special glass fiber braided with water-curable polymer compound,  it can be cured quickly when exposed to water. The structure formed after curing has high flexural strength and tensile strength.  it is widely used in power communication cable accessories, chemical industry, marine, mining, automobile manufacturing, industrial manufacturing repair and protection and other fields. It is an ideal protective material for rapid leak-proof repair of pipelines. customer also call it fiberglass armor tape or armor cast.

Features of Intermediate Joint Armored Tape:

● Construction environment temperature 5°C～35°C

● Put on gloves, open the package along the tear opening, pour water into the package, squeeze for a few seconds, take out the bandage, and wrap it to shape while squeezing out excess water

● During the winding process, the armor belt should be tightened with a little force, 1/3 overlapped, and spirally wound.

● According to the application scenario, wrap more than 3 layers until the required layer thickness

● Curing is completed in about 10 minutes after the winding is completed, it can bear the load after 30 minutes, and can reflect the perfect mechanical protection performance after 24 hours

Application of Intermediate Joint Fiberglass Armor Tape:

It is suitable for strengthening the outer sheath of cables and strengthening the outer sheath of cable joints and terminals. Fast water curing or air curing, odorless, non-toxic, non-flammable, durable, strong corrosion resistance, high insulation, easy to use, suitable for special environmental occasions, bracket structure maintenance, protection, anti-corrosion, cable sealing splicing and high temperature Ideal material to use. It is mainly used for the restoration of the steel armor outside the waterproof layer of the intermediate joint of the cold-shrinkable cable, and the joint structure plays the role of protection and support.

Steps:

1. Clean the surface of the wrapped object. Be sure to wear gloves before doing the following, tear the bag along the V-shaped groove.

2. Pour the water into the packaging bag, squeeze for a few seconds, take out the tape, and squeeze out the excess water in the tape.

3. Winding. Roll and wrap the quick patch tape gradually along a 45° angle, overlap 1/3 of the previous one for each turn, and apply a little force. After wrapping, repeatedly touch and press the surface to shape to increase the adhesion between each layer Strength and curing strength; if the diameter suddenly becomes larger or smaller, the quick patch tape can be folded back for wrapping.

4. Wind 4 to 8 layers in the same way, the specific number of layers varies according to different applications.

5. At 20°C, it can reach the non-stick state in 4 minutes, and can be cured and bear the load within 8 to 10 minutes, and can be fully cured after 1 hour.

Precautions:

1. If the ambient temperature is lower than 0°C, in order to achieve the curing effect and speed, please preheat the wound object and the quick-fix tape to above 2°C.

2. The temperature of immersion is about 25℃, not more than 50℃.

3. It must be ensured that the quick repair tape is in contact with water during use, otherwise it will affect the interlayer adhesion and strength after curing.

4. The end of the quick patch should not be stretched, but it should be naturally bonded.

5. This quick-repair belt is ready to use, open one bag at a time (can not open multiple bags at the same time), and finish the operation within the specified time. If it is not enough, you can open another bag to continue the operation.

Why choose our company:

1) We are a reliable export factory since 2005,have rich experience to how to serve overseas customer better.

2) Customers are always right

3) Strictly quality control system to ensure product quality, from the raw material come to shipping, such IQC,IPQC, FQC,QA etc in each process.

4) Good after sales service assurance, customer complaint rate is less than 0.5%

5) High efficient management to save production time and cost for customer and ourselves

6) Initial choose, long term friend!

Should you need best offer of Intermediate Joint Armor Tape or Intermediate Joint Armor Fiber Tape, pls contact us freely
