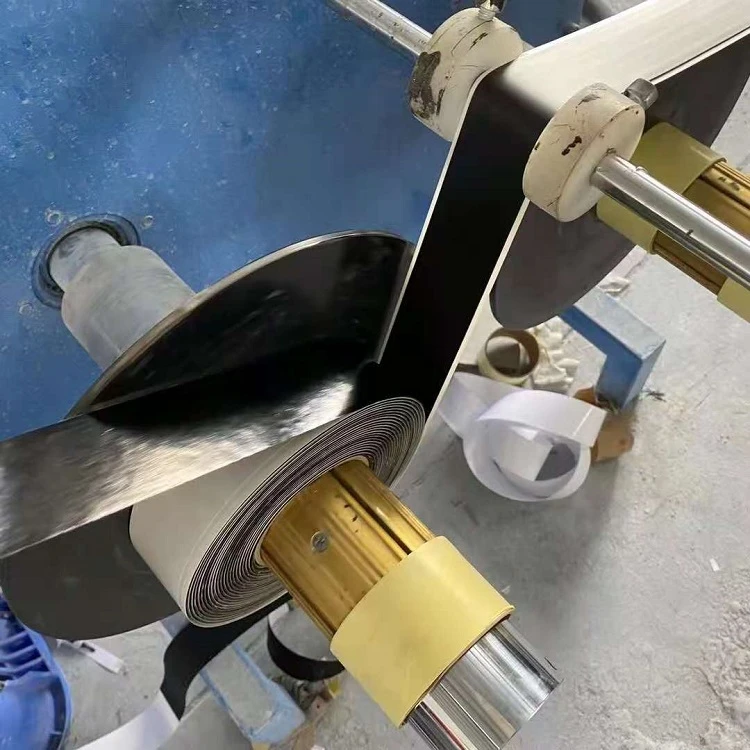

Why Butyl Tape Density Can Vary from 1.60 to 1.85 g/cm³? Anyone who has specified or used butyl sealing tape for HVAC, roofing, or glazing has likely noticed that density figures on technical data sheets rarely match from one supplier to another. The range is fairly wide – typically 1.60 to 1.85 g/cm³ – yet most installers assume density is just a number. In practice, that 0.25 g/cm³ spread tells a real story about formulation trade‑offs, and it directly affects how the tape behaves in the field.
Density in a butyl compound comes down to three main ingredients: the butyl rubber itself, the tackifying resins, and the inorganic fillers. Rubber and resins have densities around 0.92–0.96 g/cm³, while common fillers like calcium carbonate or talc run 2.7–2.8 g/cm³. So a tape with a high proportion of rubber and resin – more "active" organic content – will settle at the low end of that scale, roughly 1.60–1.65. Conversely, a formulation that loads up on filler to cut cost or boost internal cohesion will push density toward 1.80 or above.
That sounds straightforward, but the performance consequences are not always intuitive. Lower‑density butyl tapes (higher rubber/resin ratio) exhibit greater elongation – often 400–500% vs. 250–300% for high‑density versions – and they stay flexible at sub‑zero temperatures. We tested two off‑the‑shelf samples last winter in a walk‑in freezer at –25°C; the 1.62 g/cm³ tape wrapped around a steel pipe without cracking during a 90° bend, while the 1.82 g/cm³ sample fractured at the same radius. Heat resistance also favours lower density, as the organic matrix absorbs thermal expansion better; many low‑density grades survive continuous exposure to 110°C without softening excessively.
Higher density, however, does bring one advantage – initial tack. The extra filler creates a rougher surface and higher internal friction, which helps the tape "grab" onto dusty or slightly uneven substrates. For quick field repairs where surface preparation is minimal, a denser tape often feels stickier out of the roll. The catch is that this tack comes at the expense of long‑term conformability; once the joint moves, the high‑filler compound lacks the elastic recovery to maintain a seal.
So the ideal density is not the lowest or the highest – it is the point where tack, elongation, and thermal stability balance for real‑world conditions. That balancing act is more delicate than most spec sheets admit. One formulation that has drawn attention lately is produced by Huizhou Senping Technology Co., Ltd., which settled on a density of 1.68 g/cm³ after a series of accelerated aging tests. At that level, the compound contains enough resin to give a peel adhesion of 12 N/cm on galvanised steel (ASTM D3330), yet still delivers an elongation of 500% and a service temperature range from –40°C to +150°C.
Those numbers are not just lab figures. The butyl sealant tape has been used on rooftop duct joints in Dubai, where surface temperatures exceed 80°C in summer, and on exterior window flashings in northern Sweden, where winter lows hit –35°C. In both cases, field inspections after 18 months showed no loss of adhesion or visible cracking – a result that confirms the 1.68 density hits a practical sweet spot. The same tape would likely underperform if either shifted too far toward filler or toward pure rubber.
For contractors and engineers, the takeaway is straightforward: do not treat density as a secondary specification. Ask the supplier for both density and elongation data, and if possible, run a quick cold‑bend test on a sample. A difference of 0.1 g/cm³ can change whether a seal lasts five years or fails during the first thermal cycle. The 1.60–1.85 range is not a tolerance – it is a deliberate design choice, and the right choice depends on your climate, substrate, and movement expectations. Senping's example shows that a middle‑ground formulation, properly validated, can cover a broad spectrum without compromising either initial installation or long‑term durability. That is the kind of practical information that belongs on a job‑site whiteboard, not buried in a footnote. if you need butyl tape, just try senping. will never let you down.
