High Voltage Electrical Insulating Tape

High Voltage Electrical Insulating Tape Rubber Self Fusing Tape

Introduction Application

1kV power cable main insulation protection

wrap-around low-stress intermediate joint and terminal sheath recovery for 10kV and below cable

Indoor and outdoor high-voltage cables electrical insulation and moisture-proof sealing

Industrial manufacturing and gap filling at the end of the cable

Moisture-proof and sealing of electrical connections

PRODUCT DESCRIPTION:

Specifications:

25mm*0.76mm*5m

19mm*0.76mm*9.1m

25mm*0.76mm*9.1m

Or as customer requirement

Shelf life: 3 years (under sealed state)

Main purpose:

suitable for the normal working temperature not exceeding 80℃, as the insulation protection of the rubber-plastic cable terminal and intermediate connection of 10kV and below, and the insulation sealing of the communication cable joint.

How to use:

Remove the isolation film from the self-adhesive tape, stretch it to twice the length, wrap it in a half-lap style around the object that needs insulation or waterproof sealing, and then wrap a layer of PVC adhesive tape as a protective layer on its outer layer.

Product Features

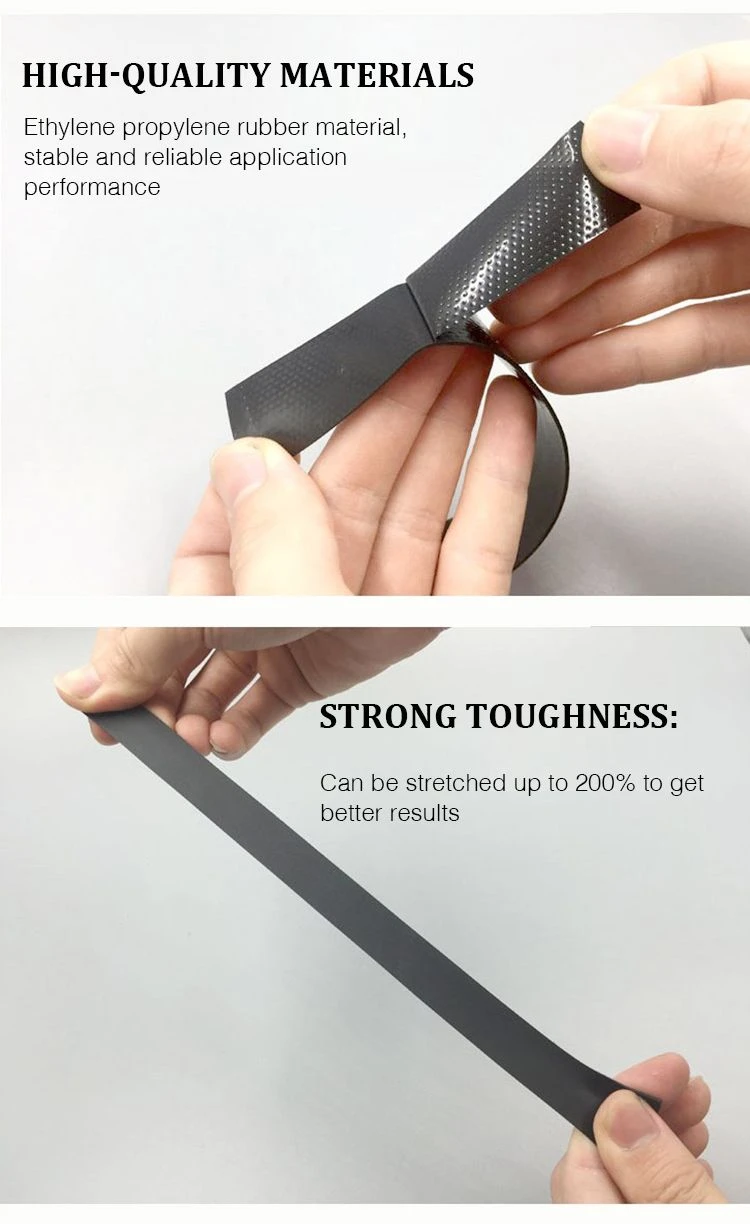

1. High elongation, good resilience, high tensile strength, good self-adhesiveness

2. After wrapping, the insulating layer is integrated, with firm adhesion and good airtightness
