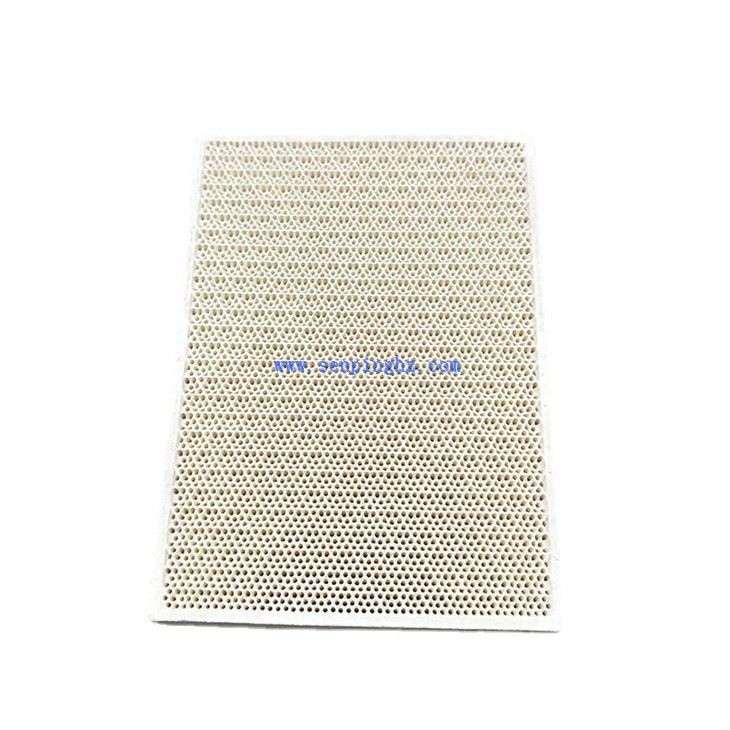

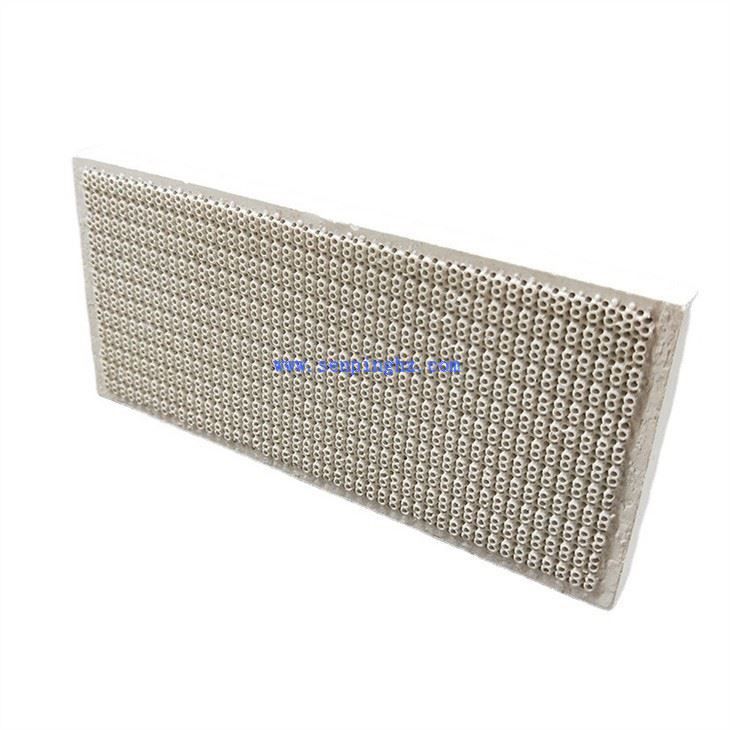

Infrared Ceramic Plate For Burner

Infrared Ceramic Plate for Burner is made of cordierite material.  It mainly heats objects by means of thermal radiation.  It has strong penetration to the heated substances, and its heat is easy to be absorbed by the heated objects, with good energy saving effect . It is also called Honeycomb Ceramic Plate for Burner

Short description of Infrared Ceramic Plate for Burner:

Specification: 200*200mm,163*73mm , etc or customized

Pattern: rhomboid,plum,8,etc

Color: White/Black/Grey

Use: Burner

Features of the product:

1. Powerful strength

2. Even radiated burn

3. Good thermal shock resistance

4. Save 30~50% energy

5. No flame burning, high combustion efficiency and lower noise

6. Harmful gases such as CO and NOx are reduced over than 90%

Advantage of  the product

1)Higher combustion heat , Better thermal conductivity, and the flue gas emission is lower than the national standard

2)Using high-quality refractory materials of good cordierite , high temperature resistance, energy saving 30-50%

3)Smaller thermal expansion coefficient, excellent thermal shock resistance , the combustion does not crack

4)High compressive and  mechanical strength, wear resistance and high hardness. long lasting

Applications  :

It is widely used in burner,grills, gas water heaters, stoves, rotary grills, portable snack trucks, gas heaters, outdoor heaters, etc.

Tech data:

Material:cordierite

Water absorption:50.5%

Open pore rat:61%

Proportion:0.6-0.9g/cm3

Thermal expansion coefficient:1.5-3(×10-6K-1)

Temperature softening:>1280°C

Surface temp.:1000-1200℃

Co-publish :≤0.006%

NOx release:≤5ppm

Should you favor with Infrared Ceramic Plate for Burner or Infrared Burner Hot Plate ,pls email to us freely
